SKU: SEN-000101-915

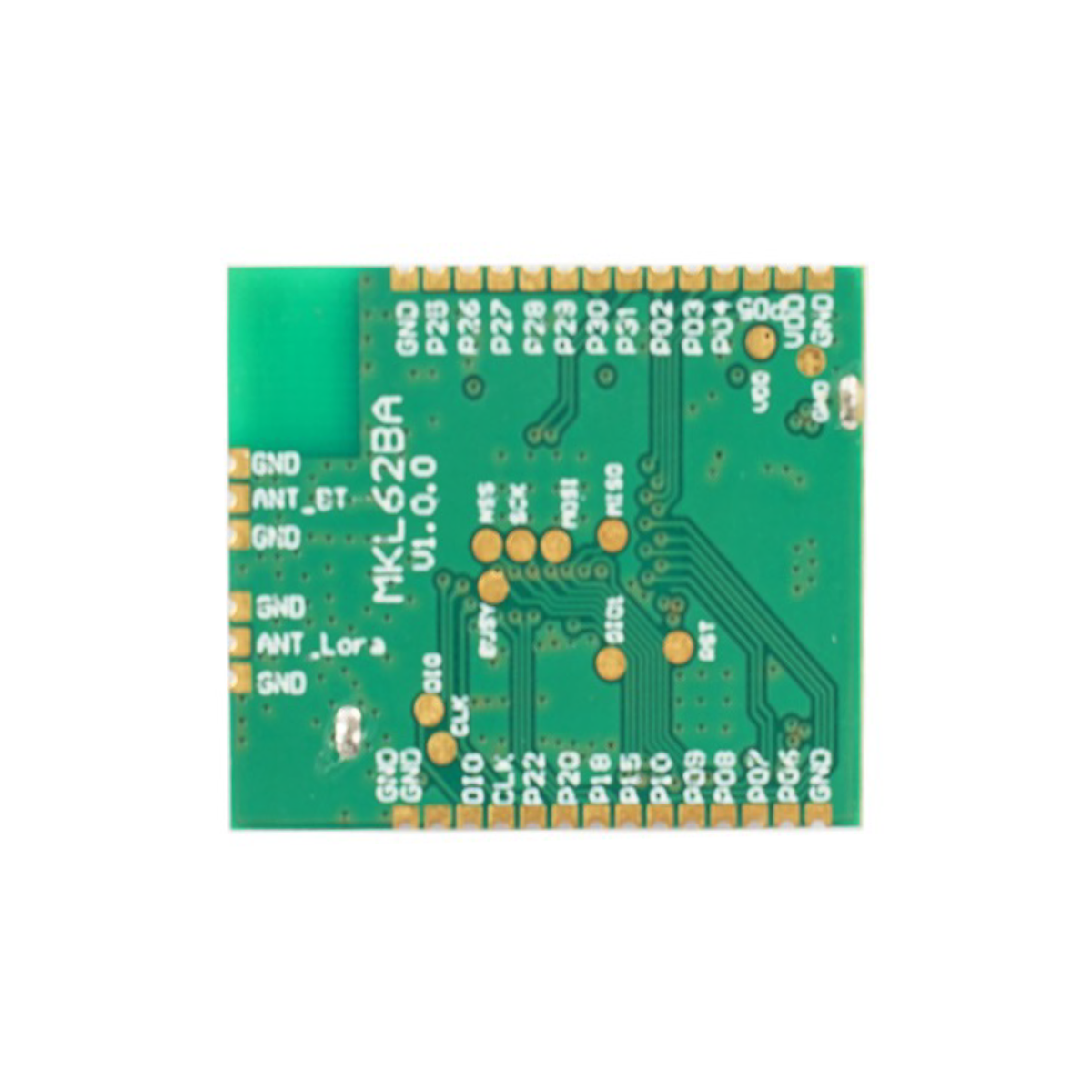

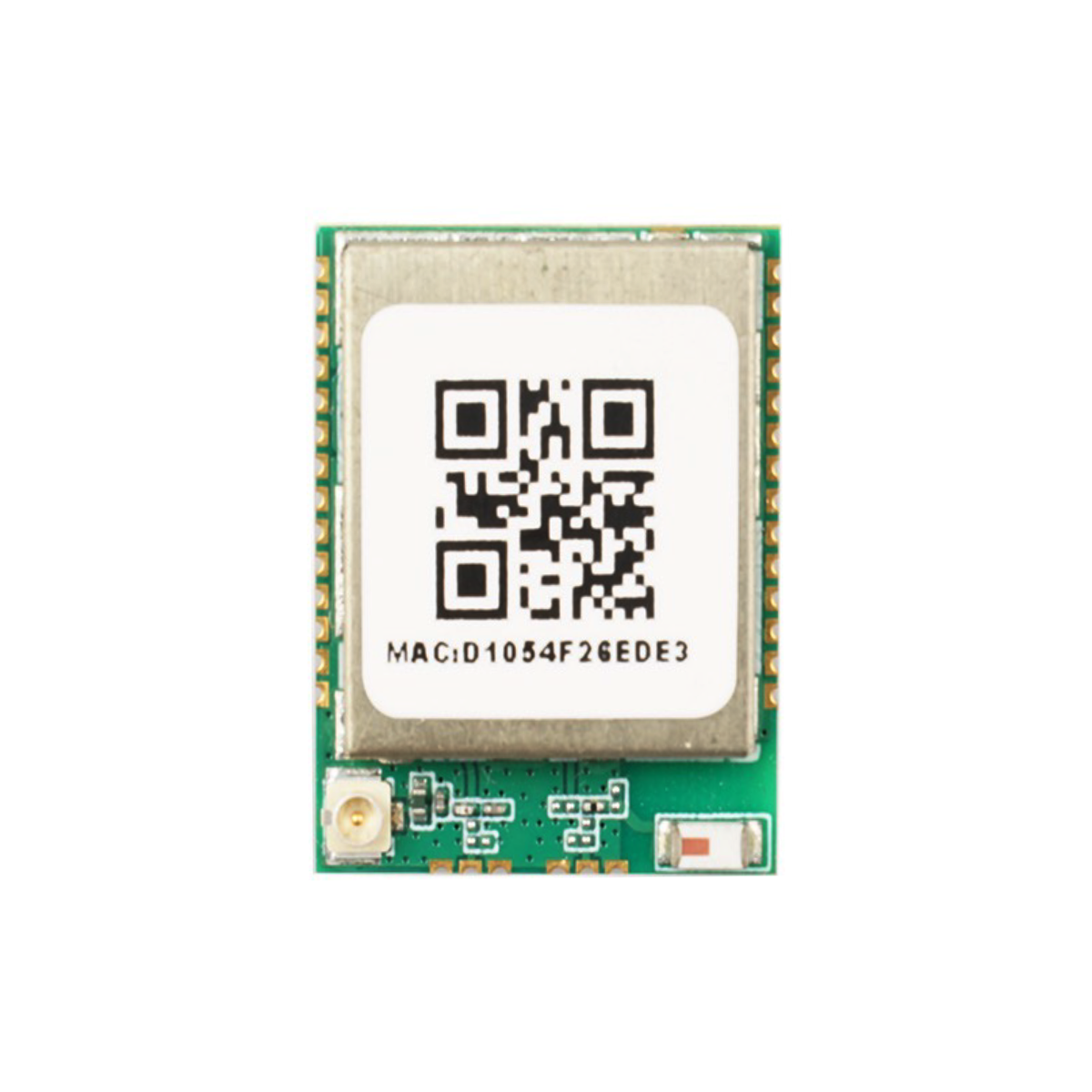

The MOKOSmart LoRaWAN® Module (MKL62BA) is a standard LoRaWAN® node module designed and manufactured by MOKO technology Ltd. The module integrates with the world-leading Nordic Semiconductor nRF52832 (BLE) and Semtech Sx1262 (LoRa) chipsets, providing ultra-low power consumption with outstanding wireless range using the LoRa® radio link and local BLE connections. Users can easily access the standard LoRaWAN® network through AT commands, making it an excellent choice for IOT applications. MOKO will provide AT commands instruction and quick start development board kit.
Key Features
  • Built in LoRaWAN standard protocol and supports the whole world LoRaWAN frequency band
  • Bluetooth v4.2 – Nordic nRF52832
  • On-board BLE ceramic antenna
  • U.FL for external LoRa antenna
  • Built-in TCXO for improve high frequency stability
  • Supports AT command for configuring
  • Compact footprint and 33 pins with SMT package
  • Long range – LoRa range up to 10 km
  • BLE TX power default in 0 dBm
  • BLE RX sensitivity: -96dBm
  • Ultra-low power consumption
  • BLE TX: 5.3mA peak (at 0 dBm @Vcc=3.3V)
  • BLE RX: 5.4mA peak (@Vcc=3.3V)
  • Deep Sleep:7 uA
  • Fast time-to-market
  • No external components required

Technical Documentation

Download Datasheet
Download Getting Started
MOKOSmart LoRaWAN® Module
